Relevant records

Relevant records are items that define and are most likely to be reused for a case or data type. These records help to define the information that is displayed in certain Pega Platform™ application windows and fields. Pega Platform provides several items that are marked as relevant records. By adopting an effective set of reusable assets, you can reduce the development time of your application.

Relevant records control design-time prompting and filtering in several areas of Data Designer and Case Designer. Records are automatically marked as relevant when you create them by using Data Designer or Case Designer. In addition, you can mark the following record types as relevant:

  • Properties
  • Sections
  • Harnesses
  • Paragraphs
  • Correspondences
  • Flows
  • Flow actions

This article includes the following sections:

Relevant records in Data Designer

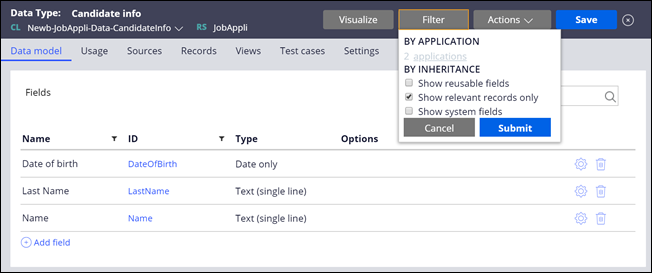

In Data Designer, click Filter and select the Show relevant records only check box to display the relevant properties for a data type. Data Designer displays only relevant records that are directly defined on your data type. To see relevant records defined elsewhere in this data type’s inheritance path, click Filter and select the Show reusable fields check box. To see internal system fields, such as properties with the px- or pz- prefix, select the Show system fields check box.

Thumbnail

Data type filter options

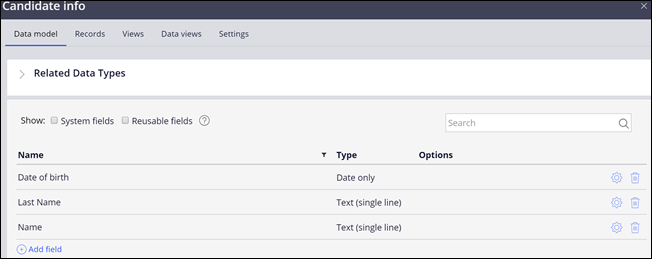

Data Designer in App Studio displays properties that are marked as relevant records for the selected data type, with an option to display inherited or system fields.

Thumbnail

Data Designer in express mode

Relevant records in Case Designer

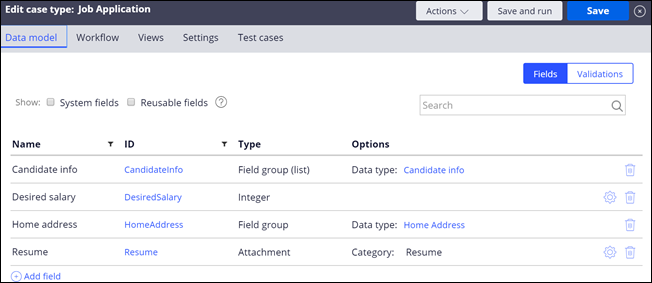

In Case Designer, the Data model tab displays relevant properties for the selected case type, with an option to display inherited or system fields.

Thumbnail

Case Designer Data model tab

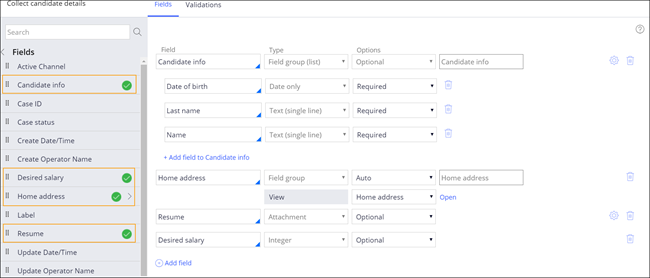

On the Workflow tab, when you configure a form by selecting an assignment, and then click Configure View, the Fields list displays the fields (properties) that are sourced from the relevant records that are configured on the current case type.

Thumbnail

Relevant records for form fields (properties)

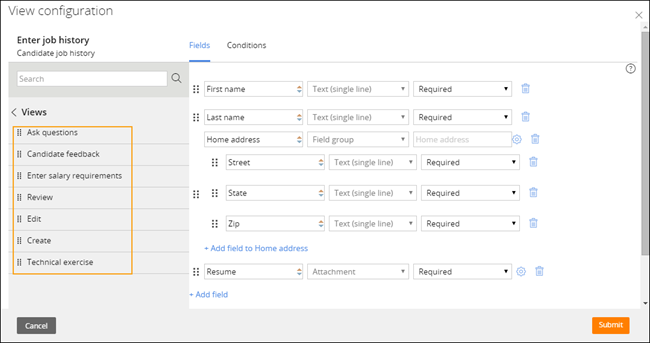

On the Workflow tab, when you configure a form by selecting an assignment, and then click Configure View, the Views list displays the sections (views) that are sourced from the relevant records that are configured on the current case type.

Thumbnail

Relevant records for sections (views)

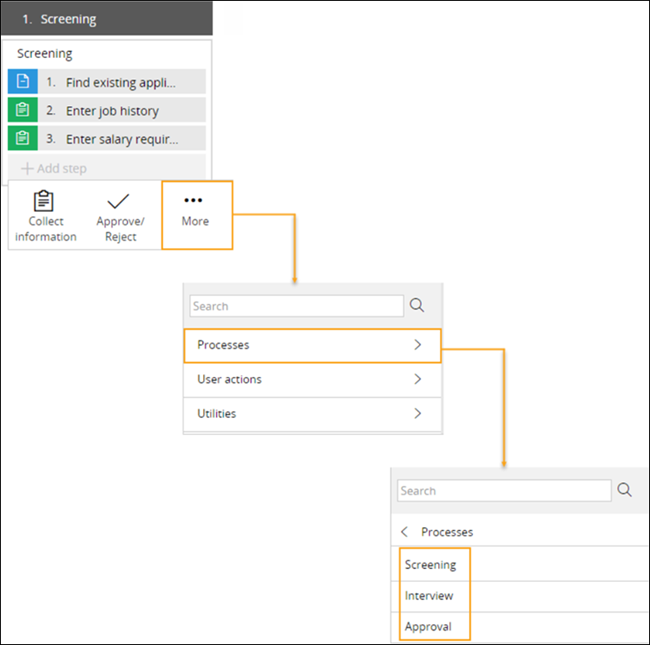

On the Workflow tab, when you click +Add Step, and then click More in the step palette, the Processes list displays the flows (processes) that are sourced from the relevant flows that are configured on the current case type.

Thumbnail

Relevant records for processes (flows)

On the Workflow tab, when you click +Add step and select More from the palette, the User actions list displays the flow actions (user actions) that are sourced from the relevant flow actions that are configured on the current case type.

Thumbnail

Relevant records for user actions (flow actions)

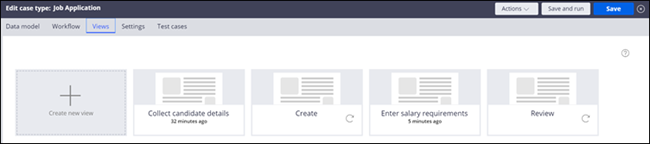

The Views tab displays the sections (views) that are marked as relevant records for the current case type.

Thumbnail

Case Designer Views tab

Relevant record management

You can manage relevant records on the Relevant Records landing page. Open this landing page by clicking Configure > Application > Inventory > Relevant Records, and selecting the class in which you want to work. You can also access the page of the specific class by right-clicking it in the App Explorer. You can add or delete records from this page to create a set of improved and reusable records to use in your application.

Thumbnail

Relevant Records page

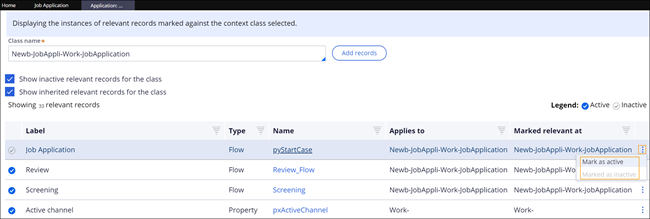

The Relevant Records landing page displays records that are marked as relevant for the selected class. To display inherited records, click the Show inherited relevant records for the class check box. To display inactive records, click the Show inactive relevant records for the class check box. You can mark specific records as active or inactive for the current class by clicking the More icon on the rightmost side of the row.

Thumbnail

Mark relevant records as active or inactive

Adding relevant records

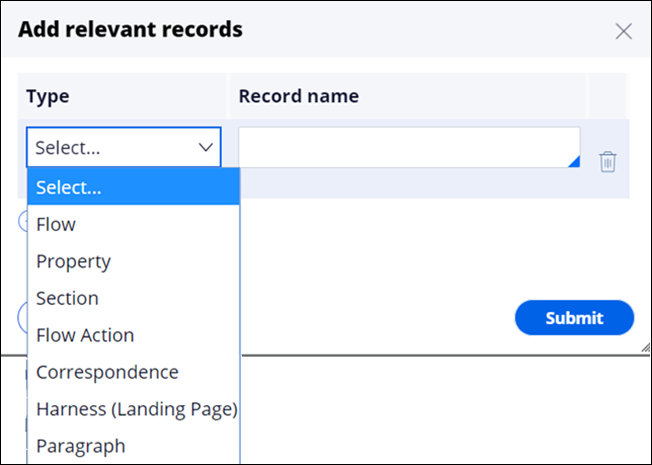

Add new records by clicking Add Records and selecting the type and name of the item that you want to add.

Thumbnail

Add Relevant Records dialog box

Newly added relevant records appear in the appropriate areas in Pega Platform. For example, if you added a property as a relevant record, it appears in the Fields list when you click the Workflow tab, select an assignment, and click Configure View.

Marking records as relevant

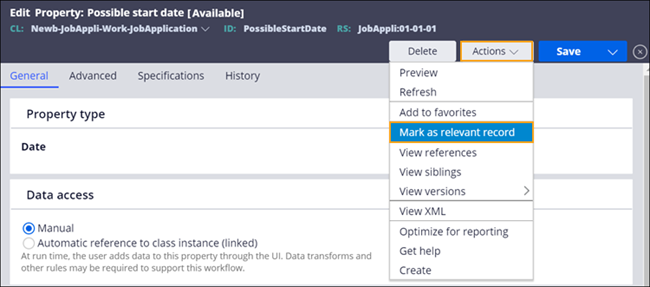

You can mark records as relevant directly from their rule form by clicking Actions > Mark as relevant record. Records that are added in this way are relevant for the class that they belong to.

Thumbnail

Mark records as relevant
