Customizing App Studio

The App Studio explorer is built using the data driven UI framework. To learn more about this framework, please read the article Data-driven UI framework.

The abstract class Pega-Ext-ExpExplorer is extended from Pega-Ext to build the App Studio explorer. The four default tabs seen on the App Explorer are subclasses under Pega-Ext-ExpExplorer.

Pega-Ext-ExpExplorer-Case

            Case items are dynamic

Pega-Ext-ExpExplorer-Data

            Data items are dynamic

Pega-Ext-ExpExplorer-Settings

            Pega-Ext-ExpExplorer-Settings-Theme

            Pega-Ext-ExpExplorer-Settings-Tools

Pega-Ext-ExpExplorer-User

            Pega-Ext-ExpExplorer-User-People

            Pega-Ext-ExpExplorer-User-Roles

            Pega-Ext-ExpExplorer-User-Organization

Add extensions

To extend App Studio explorer, add an abstract under Pega-Ext-ExpExplorer. Follow the steps detailed out in the Data driven UI framework article. Ensure you place the class at the correct depth to ensure that the page shows up at the correct depth.

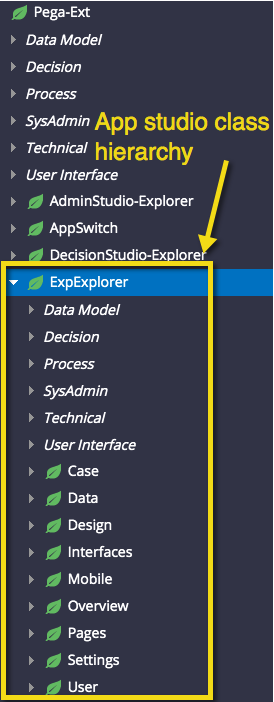

App Studio class hierarchy

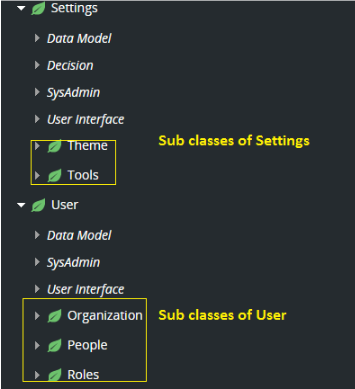

Sub classes of Settings and Users
Explorer panel

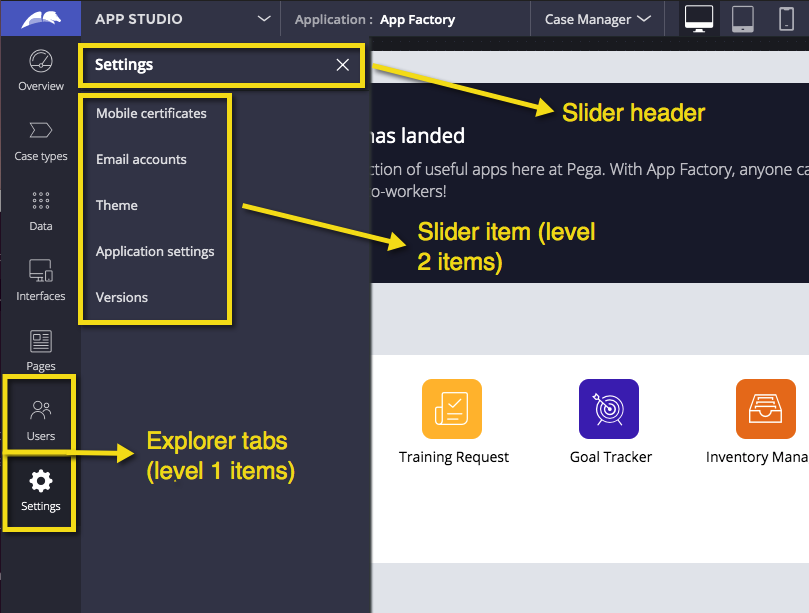

Sliders and Explorer tabs

Implementation details

A dynamic container is used to launch the extensions in a landing page. At most, there will be two landing page tabs. The default page is LiveComposer which is the case manager/user portal in edit mode. The other tab is EditModeExpressTab which is used to open pages such as case and theme. If an extension landing page is clicked, it will replace the content in EditModeExpressTab.

To configure this behavior for the extension, make the following edits in pyExpExplorerSliderLabel.

  1. Add the exp.Slider.closeSlider run script to close the slider.
    Run Script
  2. Configure Launch Harness action to label control.
    Launch Harness
  3. Enter tab name as EditModeExpressTab.
  4. Use the template harness pzExpressLPHarness to create your own harness.
  5. Set the data transform as pzSetExpressSkinForEditMode to override the end user skin.
  6. Set the activity pzPreLPActivity as the preprocessing activity before launching your landing page.

Extension points

  1. Override pyExpressLPHeaderTitle to populate the landing page header dynamically.
  2. Override pyExpressLPContentTemplate to show custom content in your landing page.
