Run script UI action in DX API

The Run script action calls a custom JavaScript function when a specified event occurs (for example, when a user clicks a button). Learn about the JSON structure and elements of a sample Run script action, to understand how you can integrate it into your custom application.

The following JSON code is a sample API response for the Run script action with a hard-coded value:

{"actionSets": [
    {
        "actions": [
            {
                "actionProcess": {
                    "functionName": "alert",
                    "functionParameters": [
                        {
                            "name": "",
                            "value": "\"hello\""
                        }
                    ]
                },
                "action": "runScript"
            }
        ],
        "events": [
            {
                "event": "click"
            }
        ]
    }
]
}

A Run Script action with a hard-coded value
A Run Script action with a hard-coded value
You can configure multiple Name-Value pairs. All such pairs are listed in the functionParameters array.

The following JSON code is a sample API response for the Run script action with a property reference:

{"actionSets": [
    {
        "actions": [
            {
                "actionProcess": {
                    "functionName": "printVal",
                    "functionParameters": [
                        {
                            "valueReference": {
                                "reference": "InputRunScript",
                                "lastSavedValue": "hello world"
                            },
                            "name": "value"
                        }
                    ]
                },
                "action": "runScript"
            }
        ],
        "events": [
            {
                "event": "click"
            }
        ]
    }
]

}

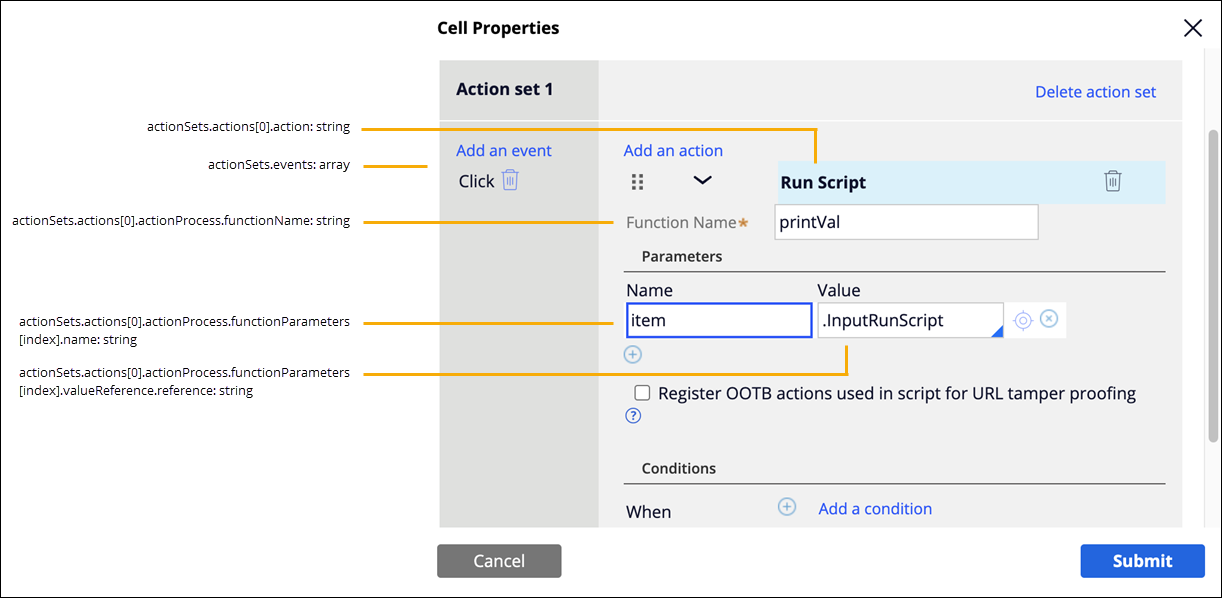

A Run Script action with a property reference
A Run Script action with a property reference
  • You can configure multiple Name-Value pairs. All such pairs are listed in the actionSets.actions[0].actionProcess.functionParameters array.
  • The lastSavedValue element is the value that the referenced property (reference) contains.
  • DX API v1 does not support the when conditions in the action set and the Register OOTB actions used in script for URL tamper proofing check box.
