Troubleshooting active Overlay section with Refresh-Other Section specified

Learn how to avoid issues with active overlay and modal sections that are designed in your applications. Understand the negative effects of specifying the action Refresh-Other Section for an active overlay or modal section, especially when this action is specified on applications migrated from earlier Pega releases.

Symptom

Explanation

Solutions

Do not use Refresh-Other Section

Using the Condition Builder to specify a When condition for Refresh-Other section

Using a Refresh condition on a parent section to be refreshed

Symptom

Sections in your application that are designed with an active overlay or modal close unexpectedly if the action Refresh-Other Section is specified and the other section is the launching section. The issue occurs when you Submit the overlay or modal and Refresh-Other Section is called when the overlay or modal is still in active state. Clicking Submit of the overlay or modal performs an implicit Refresh of the parent section that launched the overlay or modal. Consequently, the overlay or modal closes when the launching element is no longer available.

Explanation

This issue is caused by a Pega defect. Refreshing the launching section is not a valid setting when an overlay or modal section is still in active state. Refreshing the launching section is implicitly handled after you close the overlay or modal section in the application. A defect correction in a future release will ensure that invalid settings are not allowed for overlay or modal sections when the launching element is not available.

However, even after the defect correction is made available in a future release, you should not use Refresh Other Section when an overlay or modal section is in Active state. See the best practice, Do not use Refresh-Other Section.

As shown in the following image, the Submit button of an active overlay or modal section is launched by a local action designed with Refresh-Other Section specified. In this example, the section pzContent is the launching section. This means that it is the section that holds the associated element from where the overlay or modal is launched. When clicked, the Submit button of the active overlay or modal section forces the overlay or modal to be closed.

Cell Properties for Submit button Click action with Refresh-Other-Section for launching section closes the active overlay.
Cell Properties for Submit button Click action with Refresh-Other-Section for launching section closes the active overlay.
Cell Properties for Submit button Click action with Refresh-Other-Section for launching section closes the active overlay.

Solutions

To ensure the correct behavior of active overlay or modal sections in your application, choose one of the following solutions.

The first option is the easiest to implement and is the best practice. If not using or deleting the setting Refresh-Other Section is not feasible, choose one of the other solutions following the examples provided.

Do not use Refresh-Other Section

When an overlay or modal section is in Active state, do not specify the onClick action Refresh-Other Section. If Refresh-Other Section is specified, delete that setting.

Using the Condition Builder to specify a When condition for Refresh-Other section

Choose this solution if the other section to be refreshed is not a parent section.

If the form being submitted displays errors, create an activity in which you set a property using a When condition for Refresh-Other Section to prevent it from being called when the overlay or modal should remain open onClick of Submit.

For example, the following image shows the onClick action for Refresh-Other Section:

  1. For Target, specify Other Section.
  2. For Class, specify Data-Decision-Model-Training.
  3. For Section, specify pzSelectedRow.
  4. Select the check box Disable submit on refresh.
  5. For Conditions, specify When for Other Property .pyNote != “error”
Cell Properties for Solution Condition Builder When condition Refresh-Other-Section
Cell Properties for Submit button Click action with Refresh-Other-Section for launching section specifies Condition When for Other Property.
Cell Properties for Solution Condition Builder When condition Refresh-Other-Section

In the example activity pzCreateNewEntity, the steps evaluating the When conditions for Property-Set-Messages call the Method Parameter .pyNote=”error”.

Activity pzCreateNewEntity steps evaluating When condition call the Method Parameter .pyNote != “error”
Activity pzCreateNewEntity steps evaluating When condition call the Method Parameter .pyNote != “error”.
Activity pzCreateNewEntity steps evaluating When condition call the Method Parameter .pyNote != “error”

Using a Refresh condition on a parent section to be refreshed

If the section to be refreshed is a parent section containing child sections that also need to be refreshed, then specify a Refresh condition on the section or layout that needs to be refreshed.

Ensure that the Refresh condition is evaluated and satisfied using the post-activity or post- dataTransform of the overlay or modal submission by correctly setting the property in the activity.

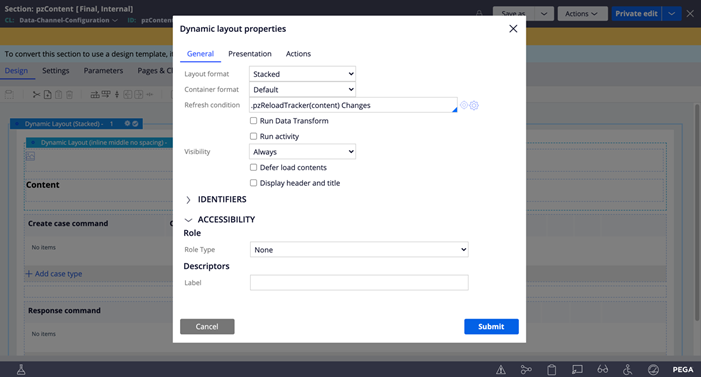

For example, the following image shows the Dynamic Layout Properties for a section pzContent:

  1. For Layout Format, specify Stacked.
  2. For Container Format, specify Default.
  3. For Refresh Condition, specify the property .pzReloadTracker(content)Changes.
Dynamic Layout properties sets Refresh condition for .pzReloadTracker(content)Changes visible Always.
Dynamic Layout properties sets Refresh condition for .pzReloadTracker(content)Changes visible Always.
Dynamic Layout properties sets Refresh condition for .pzReloadTracker(content)Changes visible Always.

In this example, the onClick Action for the Submit button of the overlay or modal is the activity pzReloadTrackerNotifier (instead of Refresh-Other Section). This activity, in which the Context parameter set to content determines whether to refresh the section by setting the Refresh When property.

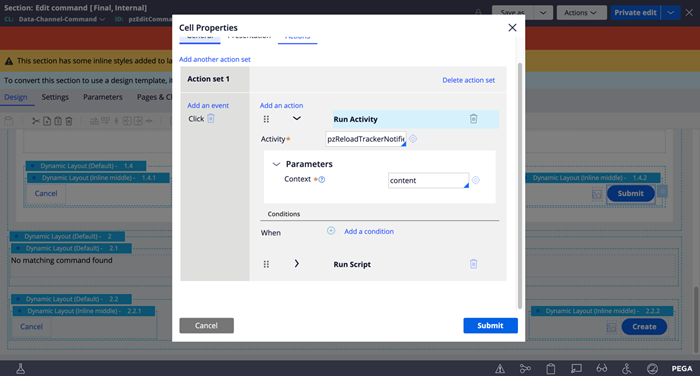

Cell Properties for Submit button Click action set the activity pzReloadTrackerNotifier with Parameter Content = context.
: Cell Properties for Submit button Click action set the activity pzReloadTrackerNotifier with Parameter Content = context.
Cell Properties for Submit button Click action set the activity pzReloadTrackerNotifier with Parameter Content = context.

Set the property.pzReloadTracker(Param.Context) in the When step Method call of the activity .pzReloadTrackerNotifier

For the activity pzReloadTrackerNotifier set the property.pzReloadTracker(Param.Context) in the When step Method call.
For the activity pzReloadTrackerNotifier set the property.pzReloadTracker(Param.Context) in the When step Method call.
For the activity pzReloadTrackerNotifier set the property.pzReloadTracker(Param.Context) in the When step Method call.
