Troubleshooting indexing issues after upgrade to Pega 7.3

Learn why reindexing of Rules, Data, and Work is important after you upgrade your deployment of the Pega platform.

Learn the approaches to reindexing to determine which approach meets your needs.

Symptom

Investigation

Explanation

Solution

Symptom

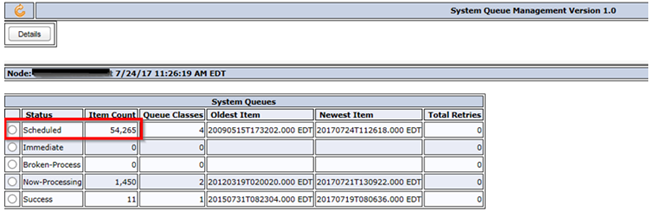

After upgrading to Pega 7.3, you notice that Search does not work as expected and that the Index queue of Scheduled items is extremely high. For example, more than 54,000 Scheduled items are in queue.

System Queues, Scheduled items

Investigation

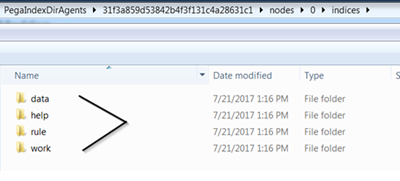

When checking the folder contents to make sure that files are being written properly, you discover that there are many folders that do not comply with the standard structure, shown in the following image:

PegaIndexDirAgents folder structure

Then you check System > Settings > Search > Agent Information and notice over 54,000 items in the Queue with the longest item in queue being more than two (2) weeks old. Online help also suggests truncating the pr_sys_queue_ftsindexer table and starting fresh to fix this issue and avoid getting caught in a race condition while reindexing and requeuing the backlog.

Explanation

Pega 7.2.2 introduced two new Dynamic System Setting (DSS) instances to disable automatic indexing after an upgrade to the Pega platform. If you have post-upgrade steps that are required before indexing and these steps require nodes to be restarted, you cannot restart the nodes until indexing finishes. This condition delays the upgrade process and is a best practice that is recommended prior to upgrading to Pega 7.3

The practice of reindexing the Rules and Data after a platform upgrade has been in place since Pega introduced the server-side indexing with Lucene and now with Elasticsearch.  The reason for this practice is that, during the upgrade, the rebuilding of indexes is disabled unless you set the flag to build the indexes after the upgraded Rules and Data are applied to the database.  Keep in mind that the engine startup process for the update or the upgrade is not the same as having the JVM process running Pega (PRPC).  Its sole purpose is to query the database tables; identify which rules need to be inserted, updated, removed, and so on; and then apply the changes, knowing that the indexing on the server will not take place during this time.  Even if the update or upgrade had the option to Rebuild Indexes enabled, the rebuilding of the indexes takes place after the update or upgrade finishes. This can take many hours to complete. Therefore, doing this in any High-Availability (HA) environment is not recommended.

Solution

The investigation described above indicated that more was missing than originally thought. Therefore, the following actions were necessary:

  1. Stop all indexing nodes.
  2. Delete the Rules, Data, and Work indexing folder contents.
  3. Restart the indexing nodes.
  4. Check System > Settings > Search > Search Index Host Node Setting to verify that all nodes are online.
  5. Reindex the Data first (faster), then reindex Work, followed by reindexing the Rules.
    Order does matter.  If Work will take longer to reindex than rules, Rules should be second in the reindex sequence. The impact to users trying to find work items may be delayed longer until both the reindexing of Data and Rules has finished.
  6. Check System > Settings > Search > Agent Information, the FTSIncrementalIndexer queue size.
    This confirms that the issue was a lack of synchronization between the nodes and that the only way to fix it was to delete all the file contents first, truncate the table, and restart the nodes and the reindexing process.
    Agent Information FTSIncrementalIndexer queue size

Now all items are indexed properly, and the queues are where they should be.

Best Practices

There are three ways to rebuild indexes:

  • If you do not have any post-upgrade steps that require a node restart, the settings listed below can be set to true.  When the first indexing node starts (preferably before any other node in a cluster), it will begin rebuilding the indexes.
  • If you choose, you can rebuild the index as part of the update or upgrade process, but it will extend the outage period until all the indexes are built.
  • If you have post-upgrade steps that require a restart, add the settings below before upgrading to Pega 7.3 or later release and then manually initiate the re-indexing after the update or upgrade process.

Dynamic System Settings

Pega-SearchEngine  indexing/distributed/rebuild_indexes_onupgrade

A blank value tells the Pega system not to run the indexing job on the first node starting up after an update or an upgrade.

Pega-SearchEngine  indexing/distributed/autonodecleanupandreindex

A false value tells the Pega system not to delete all indexes after an update or an upgrade and to recreate them automatically when any node in the cluster is unavailable.

In other words, if you start the non-indexing node first, the Pega system assumes that all index files are available, so it deletes them all and begins to create them again if the first DSS is set to true or false (but not set to blank).

Check the Queues

Check the Data, Help, Rule, and Work queues to make sure that they are current, do not have a large queue showing as Scheduled, or a folder structure that is incorrect.

If the queues exhibit any of those problems, complete the Solution steps.

If the queues look good, you need to rebuild the Rules and Data indexes only after an update or upgrade process finishes. Rules and Data change. Work does not change as part of any update or upgrade; therefore, Work does not typically need rebuilding.

Suggested Sequence

  1. Perform the rules upgrade, and then perform the dataOnly portion of the upgrade (which assumes a split-schema environment).
  2. After the post-update or post-upgrade steps are finished, rebuild the Data indexes, then rebuild the Rule indexes.

Source of Confusion

You do not have to complete either the Data or the Rules indexing before users log in to the application.  This has always been a source of confusion.  The impact here is Search. If the indexes are in the process of being updated, some Rules or Data, or both, might not be found until the indexing process finishes. All the nodes in the cluster can be up and available to users during re-indexing.

Timing

The process can take many hours, depending on the size of the three indexes being rebuilt.

Here’s one example that took seven (7) hours: Indexes had to be rebuilt for Rules, Data, and Work, including replicating and indexing across four (4) servers in the cluster.

Example Indexes, File Size, and Instance Count
Index File Size Instance Count
Rules 956 MB 764,331
Data  5.2GB 243,426
Work 6.7GB   2,856,639
