Back Forward How to set up Microsoft Word for inline property display

Summary

C-2178 The inline Word property display feature depends on special Windows settings for the DOC file type. Each application user who uses inline Word display must complete these steps.

NoteWord 2007 and 2010 on Vista and Windows 7: When running in one of these configurations, a different set of steps are needed. See below.

ExplorerProcedure

This procedure requires Windows administrative privileges. ITKIS 12/4/06

  1. Open My Computer and select Tools > Folder Options.
  2. Select the File Types tab.
  3. Scroll to the DOC file type (Microsoft Word 97 - 2003 Document). Click Advanced.
  4. Select Edit from the Actions list.
  5. Clear the Confirm open after download check box.
  6. Select the Browse in same window check box.
  7. Click OK to close the Edit File Type window.
  8. Repeat steps 3 through 7 for the DOCX file type (Microsoft Word Document).
  9. Click OK to close and save the Folder Options dialog.

After Microsoft security patches are installed, it may be necessary to repeat this procedure, as the patches might reset the Confirm open after download setting. (For security reasons, use this facility only on workstations that are secured from the Internet by a firewall and other security measures.)

NoteWord 2007 and 2010 on Vista and Windows 7:

When running in one of these configurations, the following setup steps are needed. These steps involve editing the Microsoft Windows registry. Be very careful when editing the registry. Editing mistakes in the registry can cause irreversible damage because the registry contains the settings for the operating system and application components. See Windows registry information for advanced users at the Microsoft Web site.

  1. Make a backup copy of your Microsoft Windows registry. See the article for your operating system at the Microsoft Web site:
  2. Open the Registry Editor using the Start menu on your Windows desktop: click Run, type regedit in the Open field, and click OK.
  3. In the Registry Editor, locate the \HKEY_LOCAL_MACHINE\SOFTWARE\Classes\Word.Document.8 key and select it.

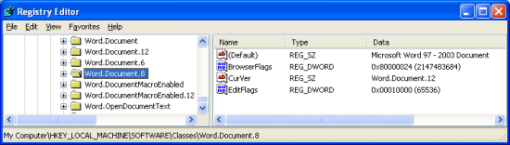

Registry Editor - Word.Document.8 key
  1. Modify the DWORD values for the BrowserFlags and EditFlags key entries:
    1. Right-click on the BrowserFlags key entry and click Modify. The Edit DWORD Value window opens.
      BrowserFlag Edit DWORD Value window
    2. Select Decimal and enter 2147483684 in the Value data field. Click OK.
    3. Right-click on the EditFlags key entry and click Modify. The Edit DWORD Value window opens.

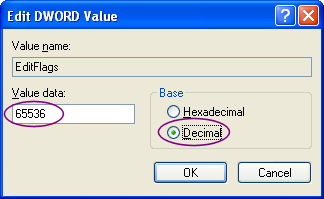

      EditFlags Edit DWORD Value window
    4. Select Decimal and enter 65536 in the Value data field. Click OK.

      Note: If you find that the EditFlags key entry only accepts a binary value, delete the EditFlags key entry and immediately re-add it with the above DWORD value.

  2. Close the Registry Editor.

Internal operations

The first time the application user accesses a work object form or flow action form that depends on inline Word display, Windows automatically downloads a Pegasystems-supplied template WordMacroManagerDot.DOT file. This file contains Word macros and is digitally signed by Pegasystems Inc. Typically, Windows saves this file in the directory:

C:\Documents and Settings\<user name>\Application Data\Microsoft Office\Templates\1033.

Related topics How to provide inline Word property display
