Landing Pages, List Views, Parameter Passing
I am implementing a custom Landing Page in Pega 24 using Constellation. The requirement is to display a list of cases based on a user-selected "Branch" dropdown and date filters. I am facing challenges with property context for filters, setting default values, and ensuring the list refreshes automatically upon selection.
Current Setup:
- Context: The Landing Page exists within the
{Application}-UIPagesclass. - Filter Property: I have a custom property,
Branch(sourced by a custom Data Page), defined in{Application}-UIPages. - Data Source: I have a List View configured with
D_WorkbasketCasesas the source.D_WorkbasketCasesbelongs to theAssign-Workbasketclass.- It accepts
BranchandDateTimeas parameters. - Logic: It retrieves relevant workbaskets for the branch, then uses a Report Definition to fetch cases within those workbaskets.
- List View Configuration:
- Created in the
{Application}-UIPagesclass. - Source set to Data Page (
D_WorkbasketCases). - "Override Parameters" is enabled to map parameters to the source.
- Created in the
The Issues:
1. Context & Promoted Filters:
I am attempting to add the Branch property (from UIPages) as a Promoted Filter on the Landing Page. The configuration UI does not list the local properties from {Application}-UIPages. It only displays optimized properties from Assign-Workbasket (the data source class). How can I use the local UIPages property as the filter input?
2. Default Values:
I need the Branch dropdown to preload with a specific default value (e.g., the current operator's default branch) when the landing page loads. What is the standard Constellation pattern for initializing these values in the UIPages context?. I have tried using pyDefault datatranform to set the default values but it is not working.
3. Reactive Updates:
When a user changes the value in the Branch dropdown, the List View should automatically refresh using the new value as a parameter for D_WorkbasketCases. Currently, the dependency between the local property change and the Data Page parameter refresh isn't triggering.
Question: In Constellation, what is the best practice for creating a reactive "Search/Filter" panel in landingpages where:
- Filter properties exist in the View's context (
UIPages) but drive a Data Provider of a different class. - Default values are set on load.
- Changes to the filter immediately trigger a refresh of the list with the new parameters.
Any insights on the architectural approach for this data binding would be appreciated.
Pegasystems Inc.
GB
@robotvinay some good questions. Will try to give some more details below but as far as i am aware, there is no way to achieve all 3 requirements at once.
@robotvinay some good questions. Will try to give some more details below but as far as i am aware, there is no way to achieve all 3 requirements at once.
- Filter properties exist in the View's context (
UIPages) but drive a Data Provider of a different class.- Promoted Filters and even view authoring will always be in the context of the datapages class. This is by design.

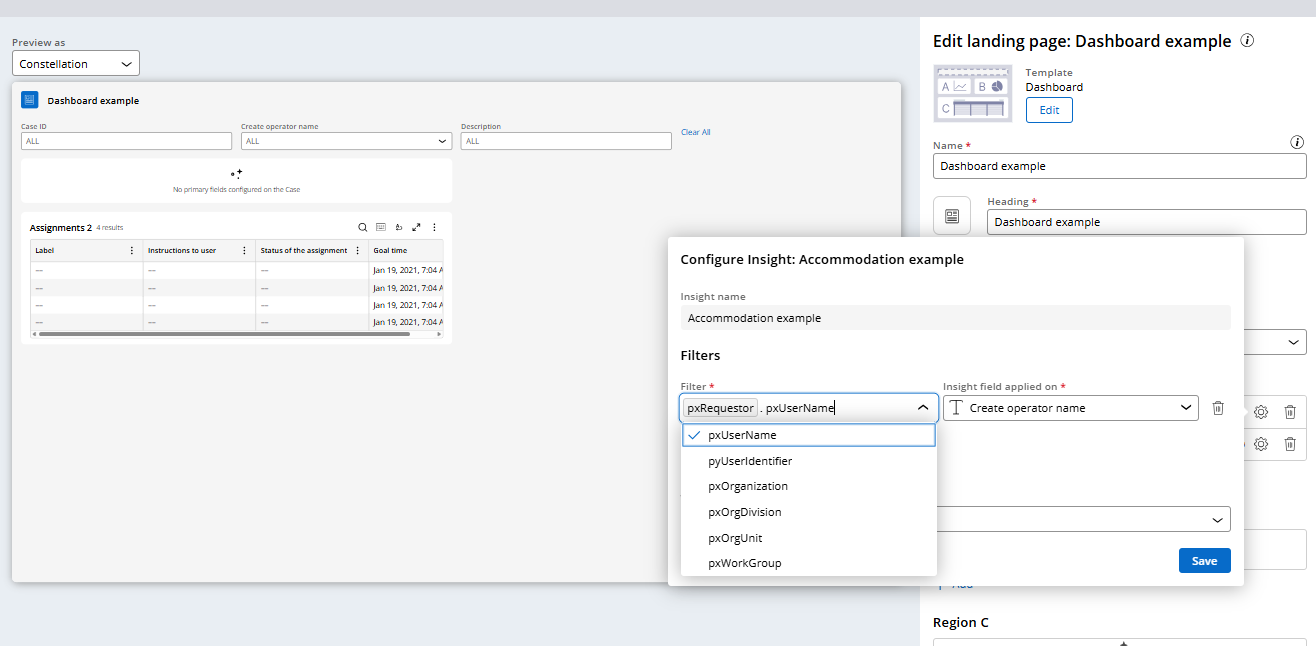

- IF you want to tie other information, say from the current operator, then you can do that but only when you add Insights to a Landing Page

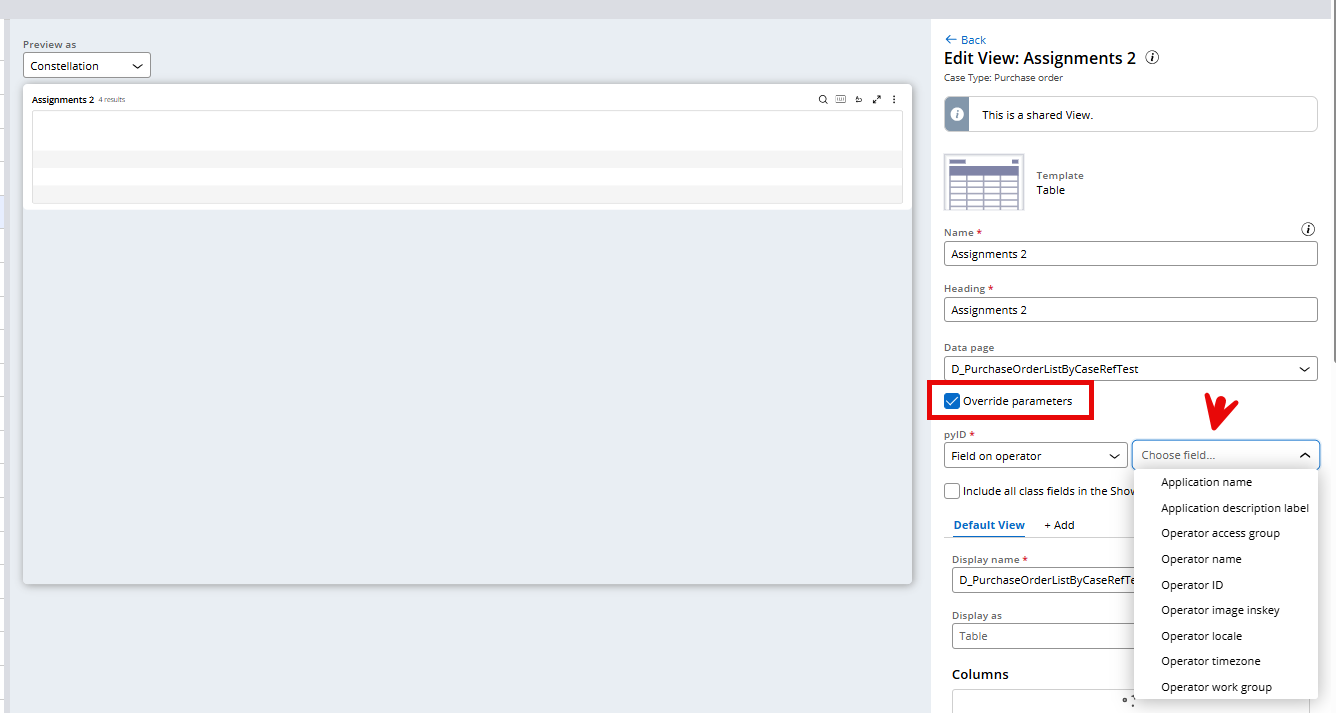

- OR you can do this on the List view configuration itself
- Default values are set on load.
- The above, would not be able to be changed by a user at run time. It is fixed.

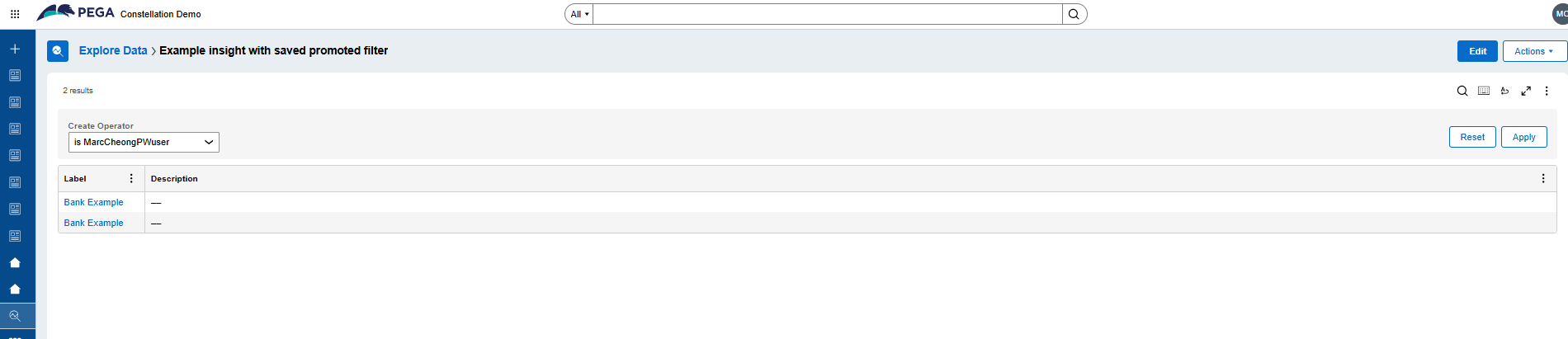

- IF you wanted to default a value, in a list, then you can do this in Insights, creating an insight with the filtered value and saving it.
- Changes to the filter immediately trigger a refresh of the list with the new parameters.
- This should happen natively, whether you use Insights or List Views. The problem right now is you're trying to tie information from two different classes, like we would of done with UI Kit and Action Sets / Report Definitions. Once you get your setup right, then you shouldn't have to do anything here.
- This may mean putting the branch inside your Assign-Workbasket class (if its a datapage, then you should be able to reuse that?)
As I said, I don't believe you can tie all three needs together at once. Maybe someone else in the community can share, if they have done this. I would be looking at creating a landing page that has multiple tabs, or a single dashboard, that would allow the user to achieve the different outcomes they are asking for:
- A tab to show work in my branch
- another tab to show work in all branches
You can do some cool stuff with insights, like showing discrete numbers and even conditional formatting to highlight things they should be paying attention too. If you can drill down on they "why" and find what the business is trying to achieve then you might be able to do some other things here that will exceed their expectations there.
LTIMindTree
US
Thanks, @MarcCheong , for providing the detailed documentation.
I’ve already tried the suggested approaches, but I’m still running into a limitation: promoted filters currently display only optimized properties.
In my case, the Branch property is simply a placeholder used as a dropdown. When a value is selected, it is passed as a parameter to a ListView data page. This property is not part of the data page results, report definition, or any underlying database column. Its only purpose is to drive a secondary lookup—for example, retrieving the list of work queues for the selected branch, and then using those to query cases from Assign-Workbasket.
Even though I’ve created the Branch property in the Assign-Workbasket class, it still does not appear as an option when attempting to configure it as a promoted filter. I have also marked Branch as Relevant record
If there’s an alternate or recommended approach to achieve this, I would appreciate your guidance. This seems like a very basic requirement, and it used to be straightforward in Theme Cosmos.
